Bar Crusher Range 535XS


$0.00
* Sail Away

Bar Crusher’s 535XS offers unrivalled ‘fishability’.

Boat Details
  • Make: Bar Crusher Range
  • Name: 535XS
  • Model Number: 535XS
  • Year: 2025
  • Length: 5.35 metres
  • Width: 2.15 metres
  • Dry Weight: 1220 kg
  • Hull Material: Aluminium Plate
  • Hull Type: V-Hull
  • Passenger Capacity: 5
  • Boat Usage: Fishing
  • Steering: Centre Console
  • Warranty: Contact Dealer

DESIGNED FOR IT
Designed for lure casting and trolling, this sleek, purpose-built sportfishing boat is perfect for targeting everything from barra, bream, flathead, snapper, kingfish, bass, cod, trout… pretty much any freshwater, estuary and inshore fish!

LOAD IT UP

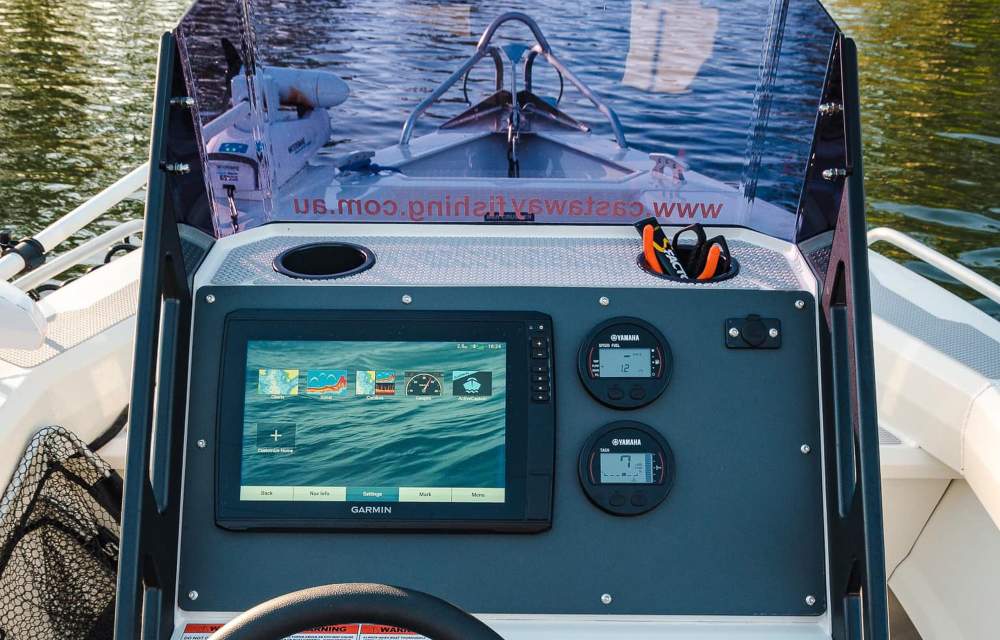

The functional centre console position delivers a true 360° fishable platform for all types of fishing, while a fully-sealed and lockable hatch in the forward casting platform opens to reveal a cavernous storage area to keep stowed gear out of the weather. Further dry storage is available in the console itself and in either of the two helm seat options – an icebox with seat cushion or deluxe flip-flop seat with tackle drawer.

FISH ON
For silently casting lures along the banks and snags for trout, bass, cod and barra, the sandflats and racks for bream, or holding position over a school of kingfish, a bow-mount electric outboard is pretty much an essential option these days. Personalise your pocket-rocket Fishing Weapon from a range of options.

  • Length overall (mm): 5350
  • Beam (mm): 2150
  • Internal freeboard (mm): 690
  • Bottom sides (mm): 4
  • Top sides (mm): 3
  • Transom length (in): 25
  • Fuel capacity (L): 115
  • Fuel system: SafeTank™
  • Ballast capacity (L): 217
  • Tow weight (kg) – dry weight: 1220
  • Minimum horsepower: 60
  • Maximum horsepower: 115
  • Overall length on trailer (mm) – hitch to prop: 6750
  • Overall width on trailer (mm): 2150
  • Height on trailer (mm): 2110
  • Overall height with roof folded (mm): n/a
  • Bunk length (mm): n/a
  • Maximum persons: 5

POCKET SPORTFISHER
Tough, premium-quality Bar Crusher plate aluminium boat construction, true 360° fishability, and factory-packaged on a custom-designed trailer with Bar Catch®, the 535XS is fitted as standard with a long list of functional features (items other manufacturers charge as extras)…

  • Waveslicer®
  • Fuel filler w/ fill-stop valve
  • Cast alloy rod holders
  • Deck grip
  • LED anchor light
  • Bar Catch®
  • 12V power outlet
  • Baitboard
  • Hydraulic steering
  • SARCA anchor #1
  • Charging ports
  • Underfloor fuel tank
  • Step-through transom
  • Single-axle trailer
  • Side pocket storage
  • Positive floatation
  • Icebox bench seat
  • Rigideck®
  • Clear bowl fuel filter
  • Berley bucket
  • LED navigation lights
  • Heavy duty ladder
  • Illuminated switches
  • Single battery (SINBA
  • Bilge pump – 2000gph
  • Anchor deck fitting
  • Livebait tank
  • Folding rear seat
  • Quickflow®
  • Toughened windscreen
  • Centre console
  • Console storage
  • Casting platform
  • Saltwater deck wash
